Multiple Spindles

Major Features

  • TS-9000 packages multiple screwdrivers, into a pre-assembled station.
  • A rigid ground steel base and square support column provide a highly stable platform.
  • Head approach and bit stroke are independently adjustable.
  • Screwdriver motors and bit holders are easily serviced without realignment.
  • Compact head tooling is positioned on the customer’s hole layout.
  • Easy to replace sub-plates allow hole layouts to be changed for retooling.
  • A large Junction Box is included to terminate sensors.
  • A central manifold provides multiple air outlets for up to 8 tools.
  • Pneumatic or Electric tools may be used with torque up to 30 Nm.
  • Cross roller or linear ball slides provide long life and low maintenance.
  • The open frame construction provides superior access compared with individual enclosed designs.
  • Externally adjustable clutches allow torque adjustment without removing the tool.
  • Compact head tooling is positioned on the customer’s hole layout.
  • The TS-9000 installs over a pallet or dial machine with minimum setup time. Everything is pre-positioned, pre-plumbed and pre-wired.

About Assembly Automation

Assembly Automation is a California-based automation component supplier, specializing in the production of pre-engineered screw driving and screw feed systems for automated and hand-held assembly equipment.
Request A Quote

Multiple Spindle Photos

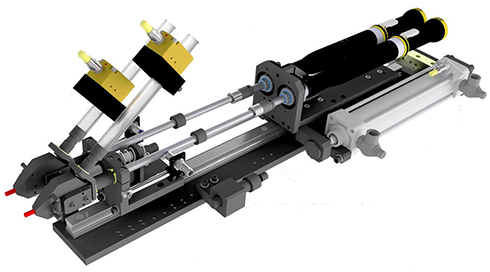

Multiple Spindle Screw Driving System

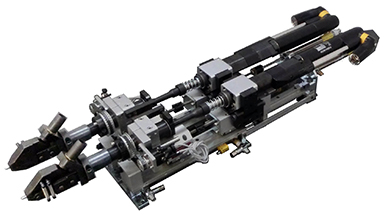

Multiple Spindle Screw Driving Systems
