Automated Screw & Bolt Feeders

Durable and Reliable

Assembly Automation automated screw feeders are built to last and often out-live the life cycle of the production run. 30-year-old screw feeders can still be found on customers factory floor fully functional after years of proper maintenance.

From Small to Large screw requirements, let Assembly Automation configure a unit or units for your production requirements and expect a reliable and rugged equipment that will perform and meet your demands.

A tradition of exceptional customer and engineering support.
3 Models available to handle screws sizes from M2 to M10.
For handheld or fully automatic systems.
Steel sound deadening enclosures and lapped spool high performance valves.
All escapements and tracks are hardened and ground tool steel.
Hardened inserts are placed in high wear areas of the bowl.

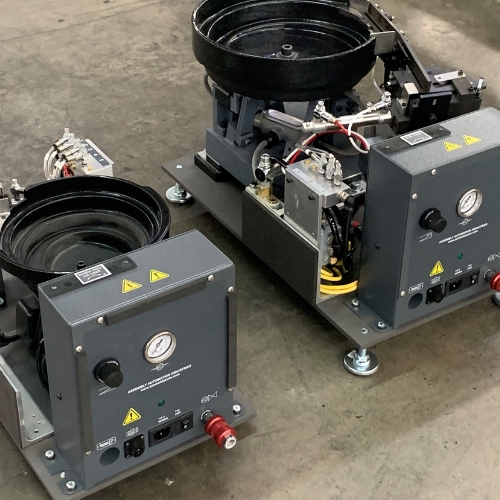

Screw Feeders

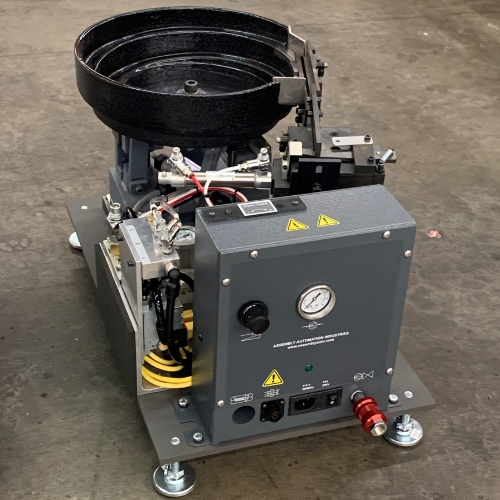

Screw Feeder Model SA-2.5

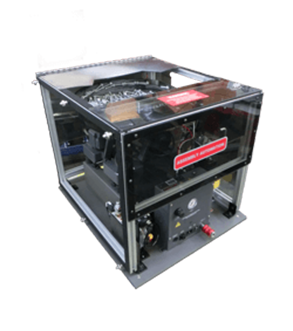

Screw Feeder Model SA-3

Screw Feeder Models



                Dimensions
                Model SA-1.5
For Small Screws
                Model SA-2.5
For Medium Size Screws
                Model SA-3
For Large Screws



                Length
                21.5 in.
                24.5 in.
                27.25 in.


                Width
                12.5 in.
                14.5 in.
                23.5 in.


                Height
                13.0 in.
                14.5 in.
                26.25 in.


                Door Ht. Max
                22 in.
                25.5 in.
                53.25 in.


                Weight - lbs
                100 lbs.
                250 lbs.
                340 lbs.


                Bowl Size
                10 in. diameter
                14 in. diameter
                17 in. diameter


                Bowl Capacity
                7.5 lbs.
                11.5 lbs.
                18.0 lbs.


                Max Screw Size
                1/4 x 1.5 LG
                1/4 x 2.5 LG
                5/16 x 3.0 LG


                Air Supply @ 80PSIG (Feeder Only)
                8 CFM
                8 CFM
                8 CFM


                Electrical Power - AMPS
                3
                5
                5


                Voltage
                120 VAC 60 HZ (240 VAC 50 HZ Available)
                120 VAC 60 HZ (240 VAC 50 HZ Available)
                120 VAC 60 HZ (240 VAC 50 HZ Available)


                Noise Level
                Less than 72 DBA
                Less than 72 DBA
                Less than 72 DBA


                Feed Tube Length (Note: Up to 30 ft. Available)
                14 ft.(Effective)
                14 ft.(Effective)
                14 ft.(Effective)


                Compatibility
                With most Pneumatic and Electric Screwdrivers
                With most Pneumatic and Electric Screwdrivers
                With most Pneumatic and Electric Screwdrivers




Dimensions	Model SA-1.5 For Small Screws	Model SA-2.5 For Medium Size Screws	Model SA-3 For Large Screws
Length	21.5 in.	24.5 in.	27.25 in.
Width	12.5 in.	14.5 in.	23.5 in.
Height	13.0 in.	14.5 in.	26.25 in.
Door Ht. Max	22 in.	25.5 in.	53.25 in.
Weight - lbs	100 lbs.	250 lbs.	340 lbs.
Bowl Size	10 in. diameter	14 in. diameter	17 in. diameter
Bowl Capacity	7.5 lbs.	11.5 lbs.	18.0 lbs.
Max Screw Size	1/4 x 1.5 LG	1/4 x 2.5 LG	5/16 x 3.0 LG
Air Supply @ 80PSIG (Feeder Only)	8 CFM	8 CFM	8 CFM
Electrical Power - AMPS	3	5	5
Voltage	120 VAC 60 HZ (240 VAC 50 HZ Available)	120 VAC 60 HZ (240 VAC 50 HZ Available)	120 VAC 60 HZ (240 VAC 50 HZ Available)
Noise Level	Less than 72 DBA	Less than 72 DBA	Less than 72 DBA
Feed Tube Length (Note: Up to 30 ft. Available)	14 ft.(Effective)	14 ft.(Effective)	14 ft.(Effective)
Compatibility	With most Pneumatic and Electric Screwdrivers	With most Pneumatic and Electric Screwdrivers	With most Pneumatic and Electric Screwdrivers

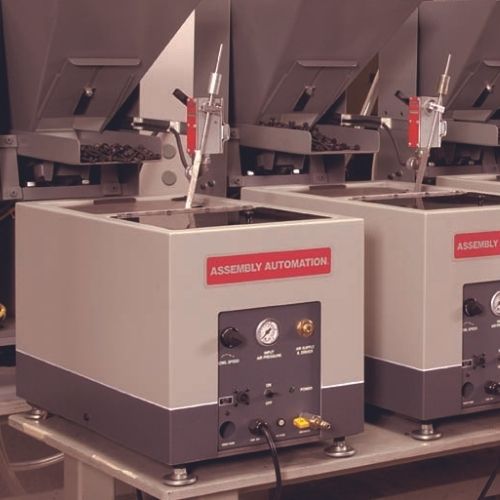

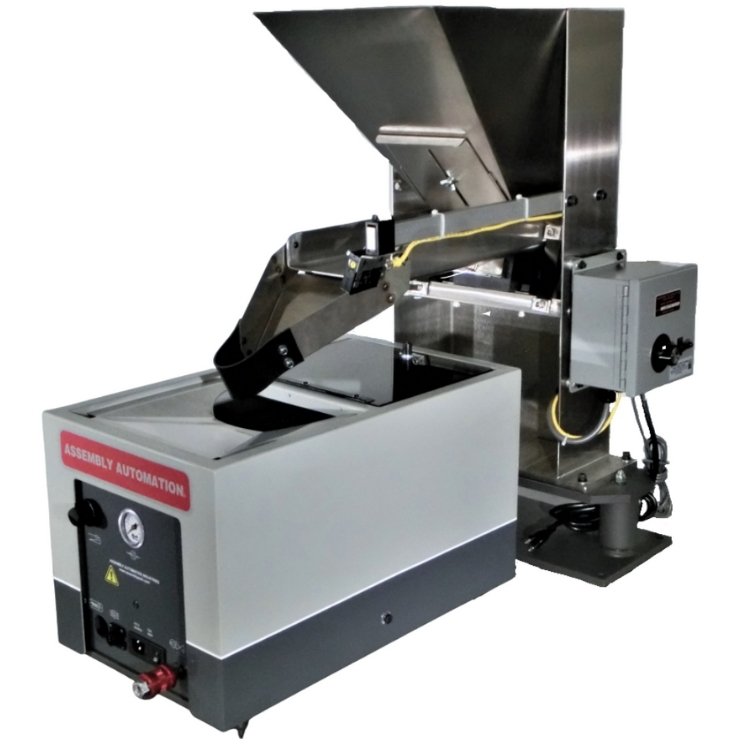

The SA-1.5 & SA-2.5 units have top access doors and may be used with bulk feed hoppers.
SA-1.5 & SA-2.5, feed systems may be used with diverters to feeds multiple spindles from one feed unit.
SA-1.5, SA-2.5, SA-3 feed systems may be supplied for 50 Hz, 240 volts operation, and declared CE.
